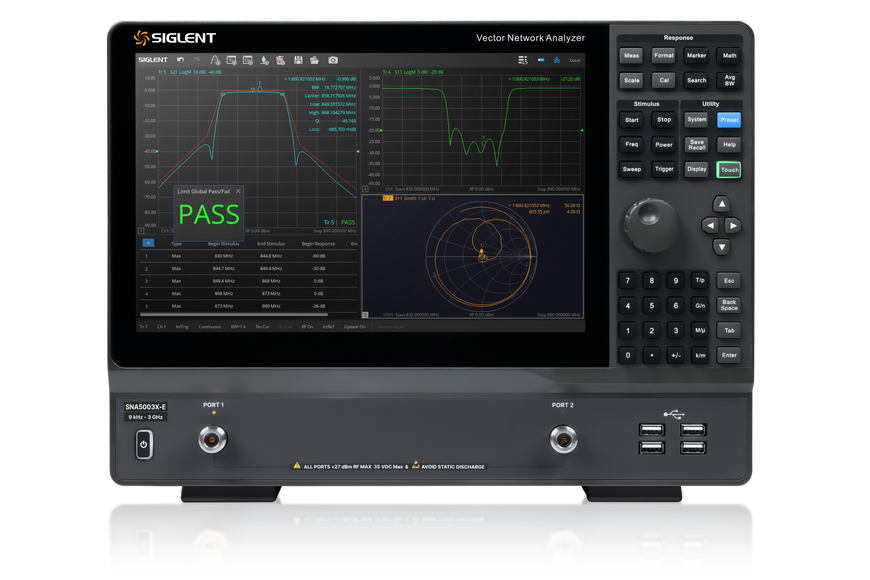

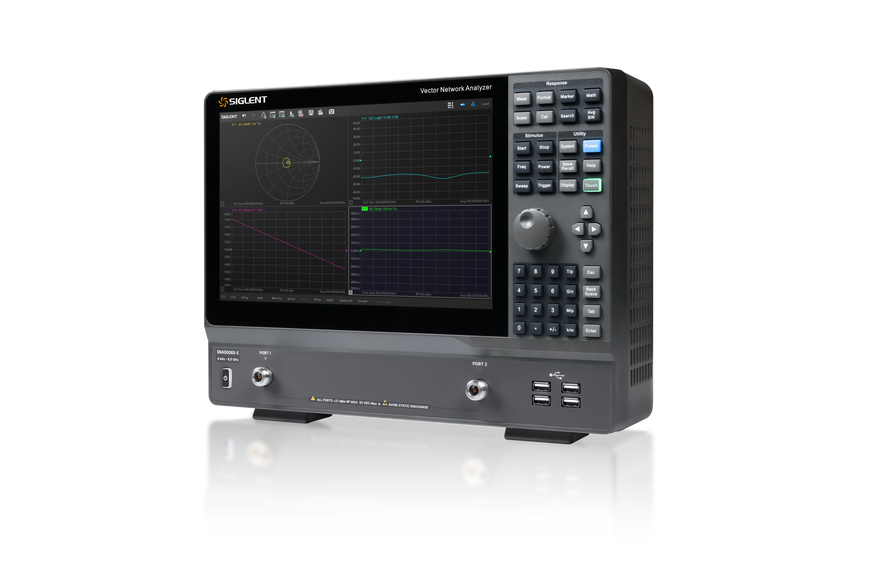

The SIGLENT SNA5000X-E series of Vector Network Analyzers have a frequency range of 9 kHz to 6.5 GHz, which support 2 port scattering parameter, differential parameter, and time domain parameter measurements. The SNA5000X E series of VNAs are effective instrumentation for determining the Q factor, bandwidth, and insertion loss of a filter. They feature impedance conversion, movement of measurement plane, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep typ es: Linear Frequency mode, Log Frequency mode, Power Sweep mode, CW Time mode, and Segment Sweep mode. The SNA5000X E series VNAs also support scattering parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.

Features

• Frequency range: 9 kHz 6.5 GHz
• Frequency resolution: 1 Hz
• Level resolution: 0.05 dB
• Range of IFBW: 1 Hz~10 MHz
• Setting range of output level: -40 dBm - +10 dBm
• Dynamic range: 125 dB (typ ..)
• Types of calibration: Response calibration, Enhanced Response calibration, Full one port calibration, Full two port calibration, TRL calibration
• Types of measurement: Scattering parameter measurement, differential parameter measurement, receiver measurement, time domain parameter analysis, impedance
• conversion, fixture simulation, adapter removal/in sertion, spectrum analysis
• Internal Bias Tee connections
• Interface: LAN, USB Device, USB Host (USB-GPIB)
• Remote control: SCPI/ Labview/ IVI based on USB TMC / VXI 11 / Socket /Telnet /WebServer
• 12.1 inch touch screen
• Video output: HDMI
