Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.3 | ~ | 8 | GHz |
| IL | 0.8 | dB@0.3-6G | ||
| IL | 0.9 | dB@6-8G | ||
| Dual Directional coupling | 38.5 | 40 | 41.5 | dB |
| Coupling flatness | ±1.1 | dB | ||
| Directivity | 18 | dB | ||
| Main line VSWR | 1.3 | |||
| Coupled line VSWR | 1.3 |
| Main line interface form | N -K |
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 120W Design assurance |
| Peak power | 3000W Design assurance |
| Shell Material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |

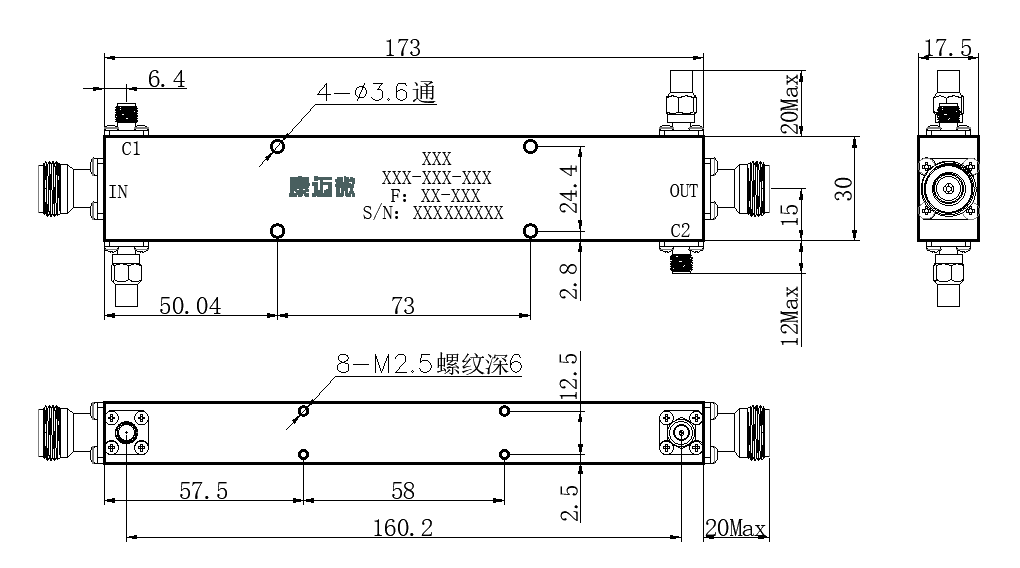

| Input port | IN(N-K) | |
| Output port | OUT(N-K) | |
| Forward coupling port | C1(SMA-K) | |
| Reverse coupling port | C2(SMA-K) |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
| Type | Dual Directional |
|---|---|
| Power | 120 W |
| Frequency | 0.3 - 8 ГГц |
| Connector | N&SMA |
| Coupling | 40dB |
