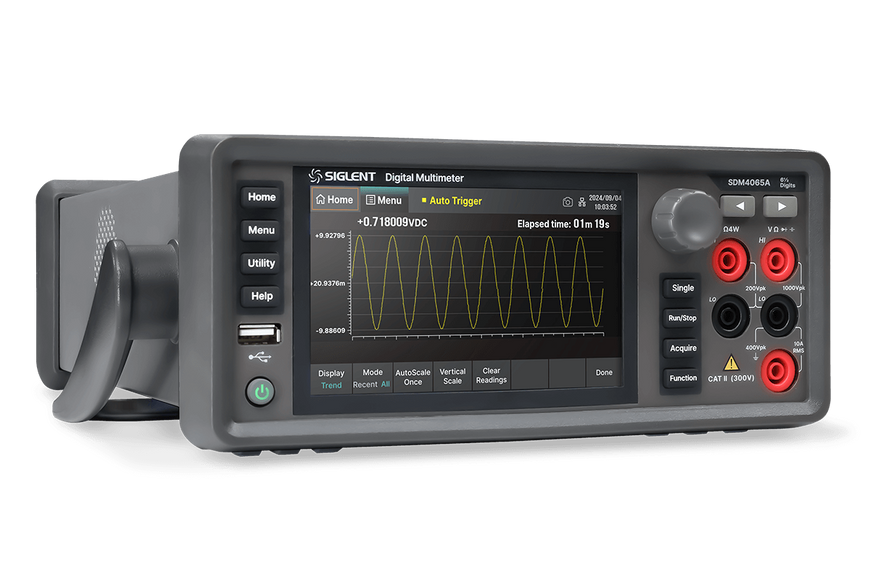

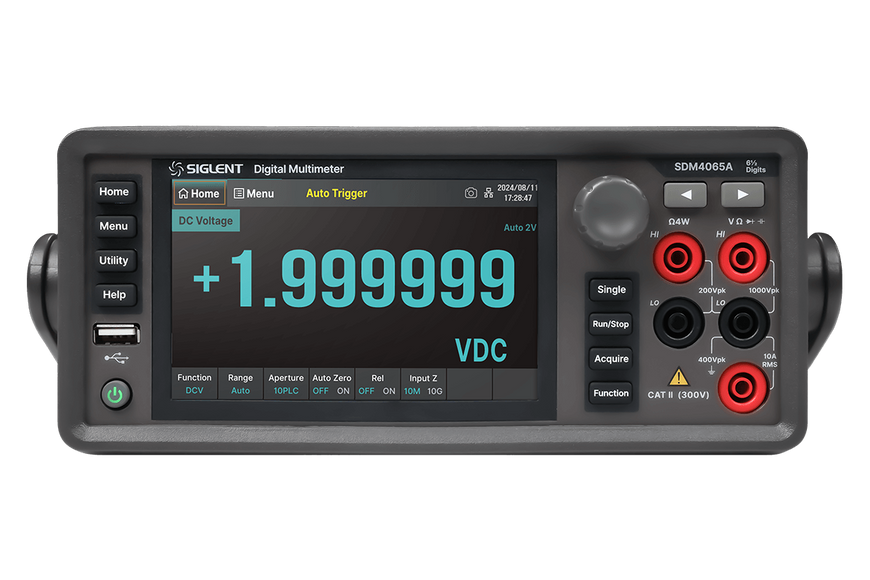

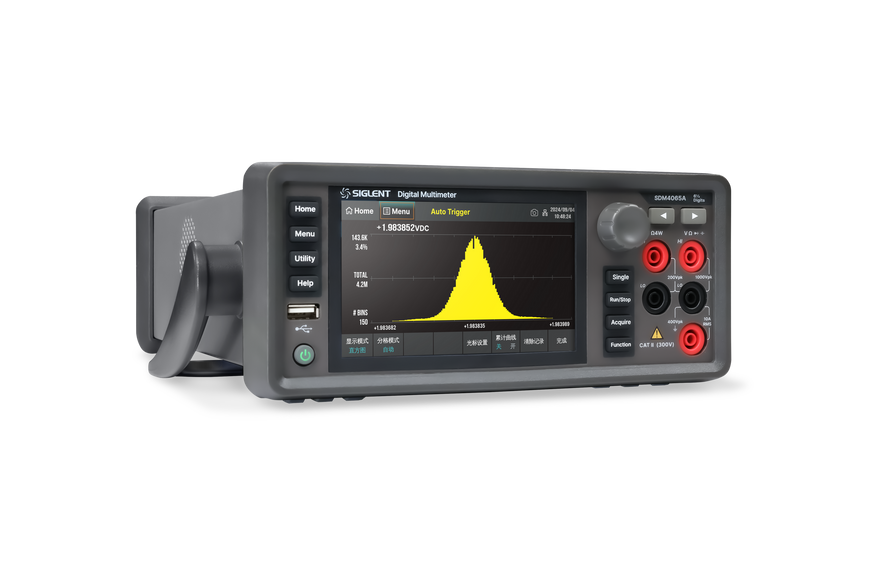

SIGLENT SDM4065A and SDM4065A-SC Digital Multimeters are a 6 ½ digit DMM (2,200,000 counts) incorporating a dual–display. The SDM4065A series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
The SIGLENT SDM4065A-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.
NOTE: The scanner is included on new SDM4065A-SC products only. It cannot be added to SDM4065A instruments at a later time.
| Reading Resolution | DC Voltage Accuracy in a Year | DC Voltage Measurement Range | AC Voltage Measurement Range | DC Current Measurement Range | Scanner Card | |
|---|---|---|---|---|---|---|
| SDM4065A | 6 1/2 | 0.0035% | 200mV to 1000V | 200mV to 750V | 200µA to 10A | No |
| SDM4065A-SC | 6 1/2 | 0.0035% | 200mV to 1000V | 200mV to 750V | 200µA to 10A | Yes |
| Type | Benchtop |
|---|---|
| True RMS | Yes |
| Counts | 2200000 |
| DCV | 1000 V |
| ACV | 750 V |
| DCI | 10 A |
| ACI | 10 A |
| Resistance | 100 MOm |
| Capacitance | 100 mF |
| Frequency | 1 MHz |
| Temperature | 1820 C |
| Autoranging | Yes |
| Professional | Yes |
