Product Overview

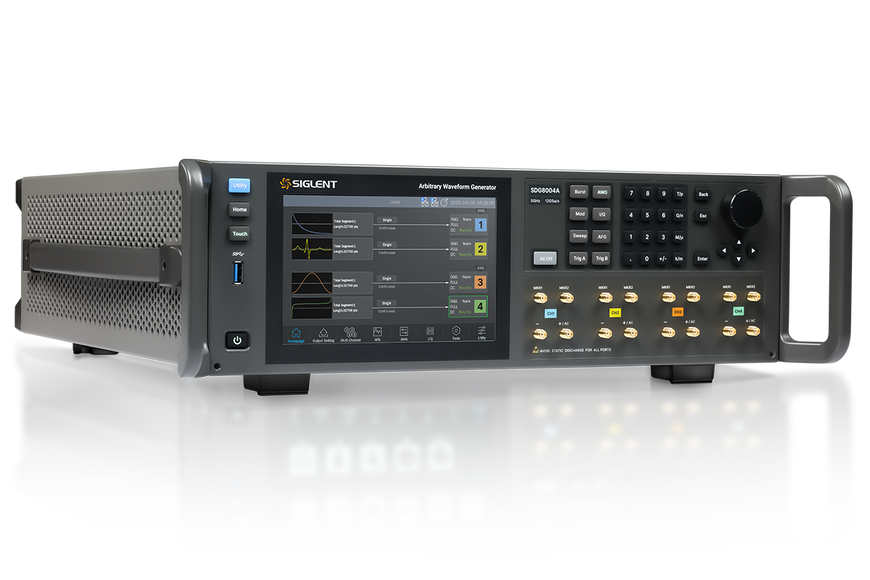

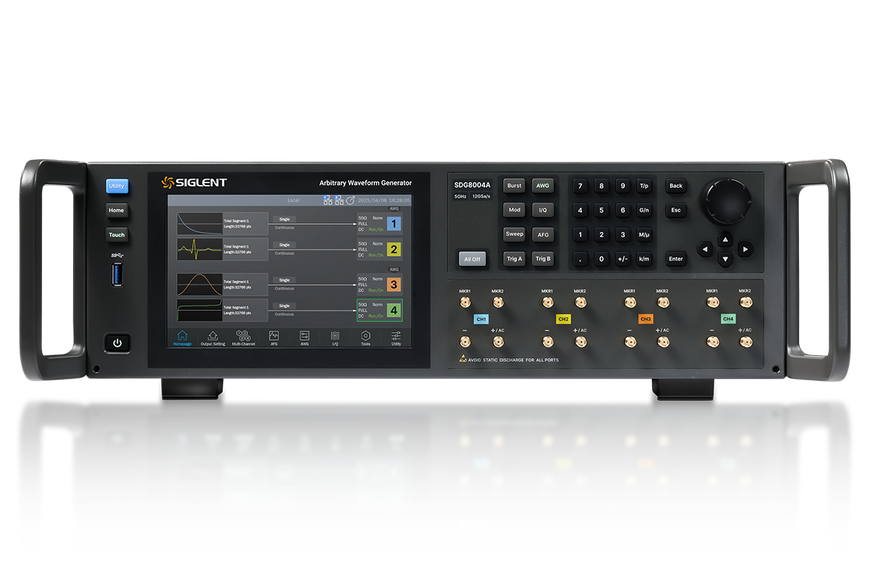

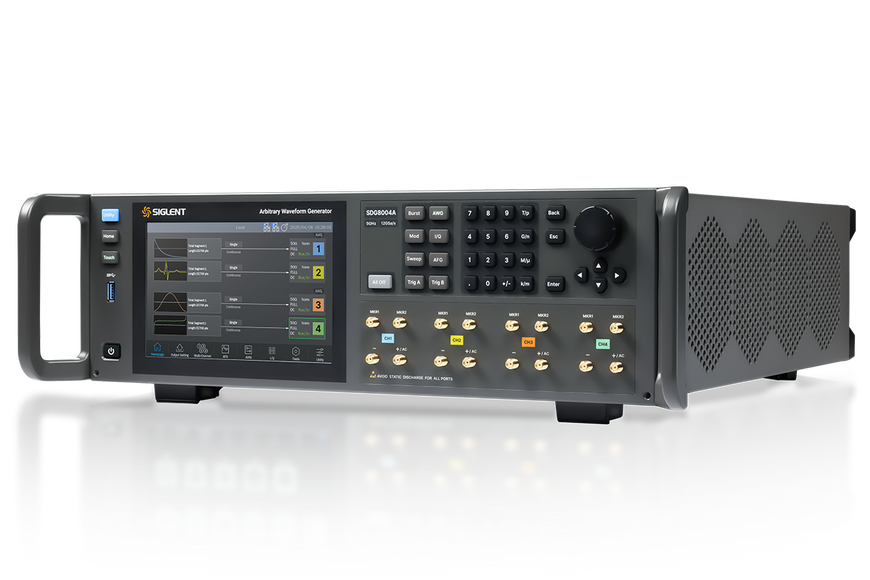

SDG8000A series function/arbitrary waveform generator, maximum 4 analog output channels, 16-bit vertical resolution, maximum 12 GSa/s (interpolation) sampling rate, output frequency up to 5 GHz and maximum modulation bandwidth up to 2 GHz. Maximum storage space of 4G points per channel, providing longer playing time without sacrificing signal bandwidth. With SigIQPro, it can also provide waveform output of communication signals such as Bluetooth, WIFI and LTE. In addition, SDG8000A also provides high-speed serial code signal(Hss)output, supports complex multi-layer sequence wave output, and has the functions of multipulse, multitone and chirp, which meets a wide range of test requirements in communication, industrial and scientific research fields.

Key Features

•     Using EasyPulse technology, it can output low-jitter square/pulses, and the pulse wave can achieve fine adjustment of pulse width, rising/falling edges, wi  extremely high adjustment resolution and adjustment range
•     Support single-ended and differential output modes
•     Support multi pulse output function, which can be used to measure the switching parameters of power devices and evaluate their dynamic characteristics
•     Support multi-tone and chirp functions
•     196 built-in arbitrary waveforms

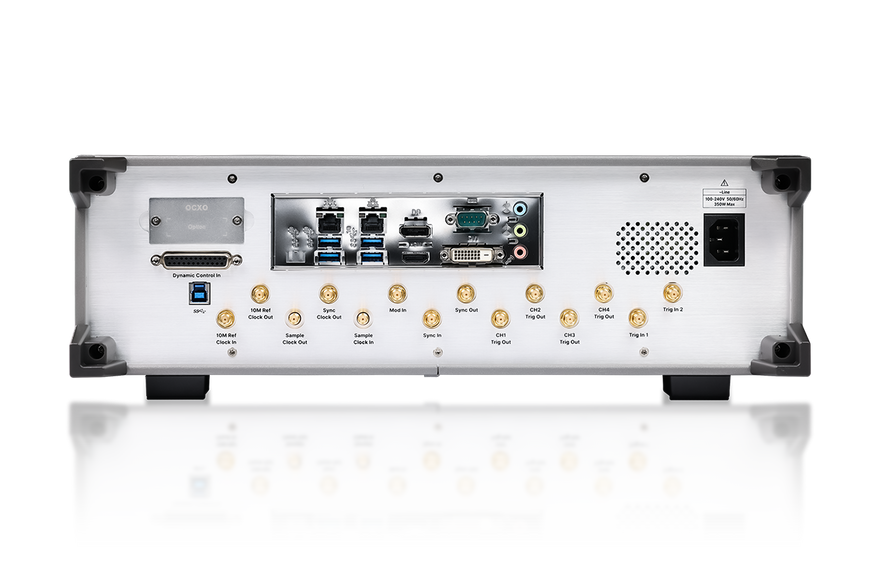

•     Standard interfaces: USB Host, USB Device(USBTMC), LAN (VXI-11); optional GPIB
•     Built-in 250 GByte SSD hard disk
•     Built-in WebServer supports instrument control via web browser
•     7-inch display touch screen
