  • RF Attenuator DAT90F 417717
Video
Description

DAT90F Features List

  • Attenuation: 0-90dB
  • Step Size: 0.25dB
  • Frequency range: 100MHz – 6GHz
  • Usable from 50MHz – 6.5GHz
  • Insertion loss: 8dB typical
  • Max input power: +25.0dBm
  • Dimensions: 2.75″ x 1.25″ x 2.15″
  • Return Loss: 15dB typical
  • Premium gold microwave SMA connectors
  • Micro-USB powered and controlled (virtual COM serial port - 115.2Kbps)
  • Manual controls and display for stand-alone usage
  • Aggressive pricing for unbeatable value in RF test environments
  • Audio, LED, and OLED display user feedback
  • Simple control GUI for PC host

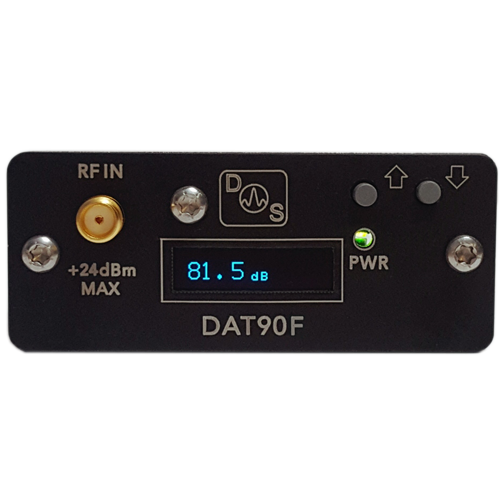

RF Attenuator DAT90F

To order
SKU: 417717
RF Attenuator: Programmable, 0.1 - 6 GHz, 0,316 W, 0 – 90 dB, SMA, USB
Price upon request
Sign in
to add this item to wishlist
Notify me when back in stock
Sign in to
add the product to the waiting list
Features
Type  Programmable
Power  0.316 W
Frequency  6 GHz
Attenuation  0 – 90dB
Connector  SMA
