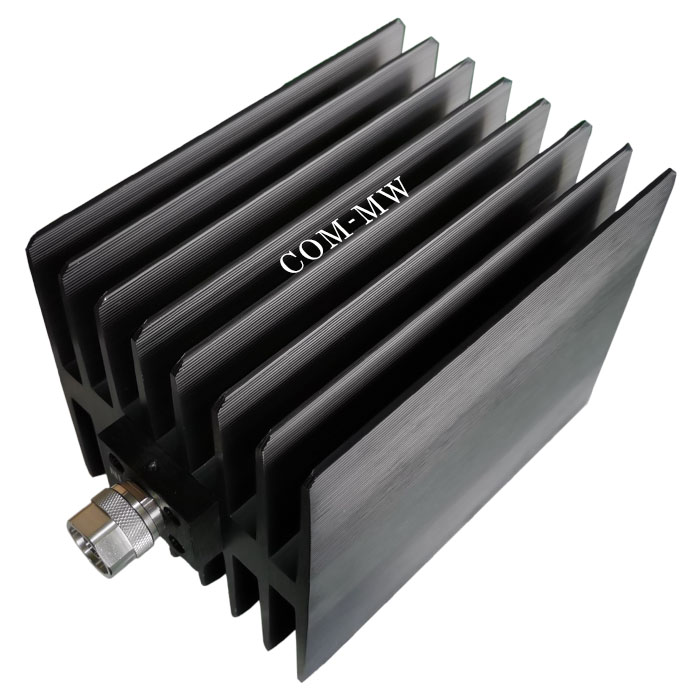

Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
| Frequency | DC | ~ | 6 | GHz |
| Attenuation | 29.1 | 30 | 30.9 | dB |
| VSWR | 1.25 |
| Power | 150W Design assurance |
| Impedance | 50Ω |
| Connector | N-JK |
| Surface | Black |
| Product shell material | Aluminum |
| Work Temp. | -40~+85℃ Design assurance |
| Other | In Port N-J |
1. When installing attenuators, it is necessary to consider sufficient heat dissipation space and avoid installing them next to equipment with high heat output, otherwise the power capacity will decrease;
2. Small power attenuators do not have input and output directions, nor do they indicate directions. When high-power attenuators have input and output port markings, they must be connected to the equipment in the specified direction, otherwise the attenuator may burn out.

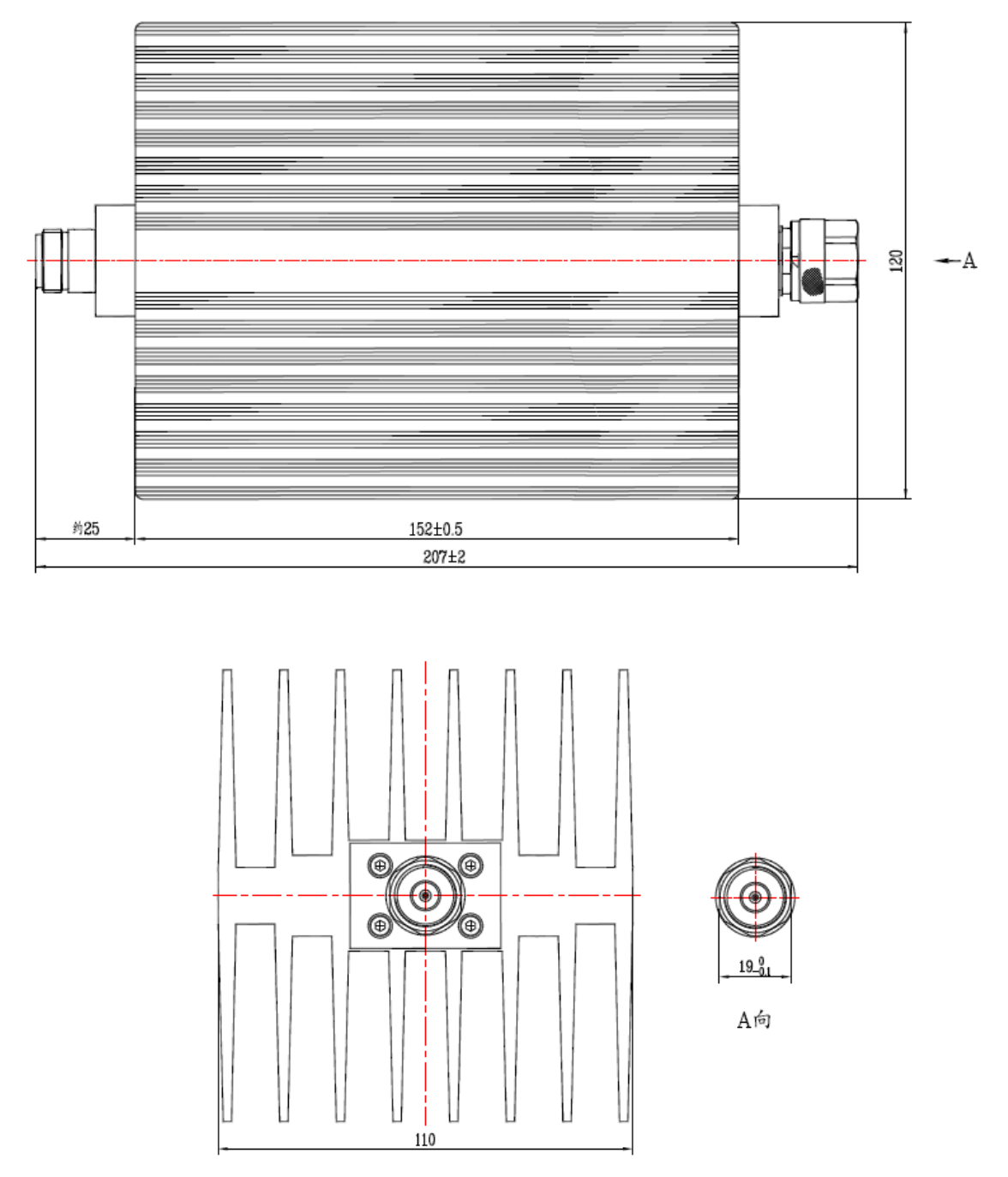

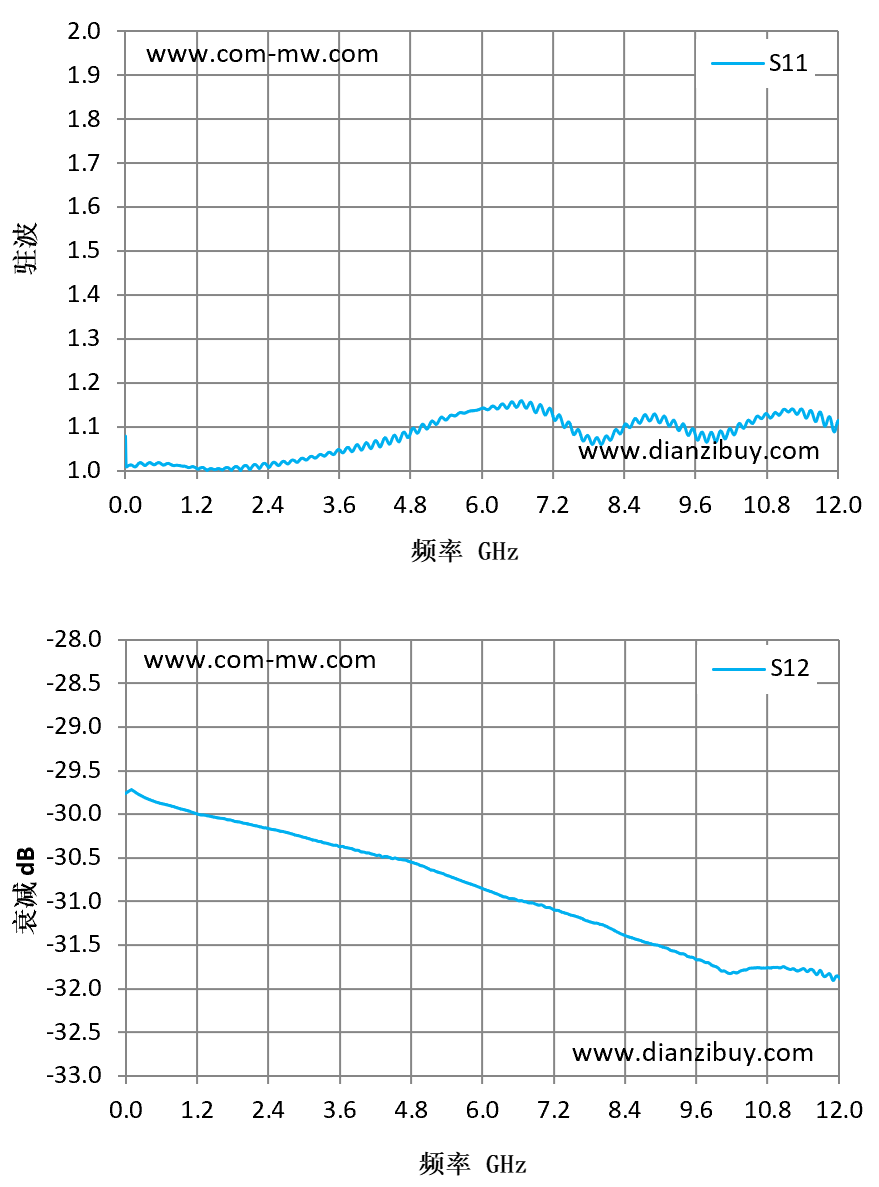

| Frequency(GHz) | S11 VSWR | S12 Attenuation |
| 0.01 | 1.08 | -29.77 |
| 0.86 | 1.01 | -29.93 |
| 1.71 | 1.01 | -30.06 |
| 2.57 | 1.01 | -30.19 |
| 3.43 | 1.04 | -30.34 |
| 4.29 | 1.05 | -30.47 |
| 5.14 | 1.11 | -30.64 |
| 6 | 1.14 | -30.85 |
| 6.86 | 1.15 | -31.02 |
| 7.71 | 1.07 | -31.21 |
| 8.57 | 1.11 | -31.43 |
| 9.43 | 1.1 | -31.62 |
| 10.29 | 1.09 | -31.82 |
| 11.14 | 1.14 | -31.77 |
| 12 | 1.11 | -31.87 |
| Type | Fixed |
|---|---|
| Power | 150 W |
| Frequency | 6 GHz |
| Attenuation | 30dB |
| Connector | N |
| VSWR (Max.) | 1.25 |
